One to many: One record of an entity is related to one or more records of another entity.. An Entity Relationship Diagram is a great tool to help you define, understand, and communicate the requirements of a system. It can be modelled at a high level (conceptual data model), a detailed level (physical data model) or a level in between. Oct 5, 2016 at 6:18. @DeniseTan Yes, it is indeed possible. A many-to-many relationship could be normalized to two one-to-many relationships, with a junction table. That would be represented by an abstract model, which can also contain attributes (i.e. timestamp). For example, questions and tags in SO is a many-to-many relationship.

Learn Entity Relationship Diagram (ERD). Read this ERD guide for everything you need to know about data modeling and database design with ERD.. When present in an ERD, the entity Team and Player are inter-connected with a one-to-many relationship. In an ER diagram, cardinality is represented as a crow's foot at the connector's ends. The. Showing One-to-Many Relationships in an ER Diagram. Let's take a look at a more complete example of a simple customer ordering system using an ER (or entity relationship) diagram. (If you want to learn more about these diagrams, Vertabelo Features: Logical Diagrams is a great starting point.) Here's the model:

Related Posts of Erd Diagram One To Many :

I try to make a er diagram, and my professor told me that the the er diagram still only support one product per order, how can i make the order support multiple products?. the image link is in the description. entity-relationship; diagram; Share. Improve this question. Follow edited Mar 3, 2019 at 18:02. Martin Liversage. 103k 22 22 gold.

Lucidchart is the leading ER diagram tool. Entity-relationship diagrams (ERD) are essential to modeling anything from simple to complex databases, but the shapes and notations used can be very confusing. This guide will help you to become an expert in ER diagram notation, and you will be well on your way to model your own database! 4 minute read.

One to many relationship is a type of cardinality that refers to a relationship between two entities in an entity relational diagram (between two tables in a database). A simple example would be a binding between the entities order and item. Each order may have multiple items, but a product (e.g., a TV) may be delivered within a single order.

The 2 first relations, One and Many, have an unspecified lower bound. So when using them you leave an ambiguity of whether they are mandatory or optional. This ambiguity is useful in modeling, in order to cope with one or several of the following circumstances: . lower bound could be temporarily undefined, for example during the design phase, when all business rules are not yet clear.

An ERD visualizes the relationships between entities like people, things, or concepts in a database. An ERD will also often visualize the attributes of these entities. By defining the entities, their attributes, and showing the relationships between them, an ER diagram can illustrate the logical structure of databases.

Many-to-many relationship is a type of cardinality that refers to a relationship between two entities in an entity relational diagram (between two tables in a database). A simple example would be a relationship between the entities student and course. Each student can have multiple courses and each course is for multiple students.

What is an Entity Relationship Diagram (ERD)? See ultimate guide to ER diagrams including a video overview, origins, uses, examples, components, limitations, and guidelines on how to draw them for free in Lucidchart.. The three main cardinal relationships are one-to-one, one-to-many, and many-many. A one-to-one example would be one student.

One-to-one relation: - A one-to-one relationship is represented by adding '1' near the entities on the line joining the relation. In another type of notation one dash is added to the relationship line at both ends. One-to-Many relation: A one-to-many relationship is represented by adding '1' near the entity at left hand side of relation and 'N' is written near the entity at right.

By the same token, a customer places many orders, but an order comes from only one customer. If we have instances of two entities (A and B), then a one-to-many relationship exists between two instances (Ai and Bi) if Ai is related to zero, one, or more instances of entity B and Bi is related to zero or one instance of entity A.

There are three types of relationships: one-to-one, one-to-many, many-to-many. Draw Entity-Relationship Diagrams (ERD) easily with ConceptDraw extended with Entity-Relationship Diagram (ERD) Solution from the Software Development Area.. Entity Relationship Diagram (aka ERD, ER Diagram, E-R Diagram) is a well-tried software engineering tool.

Use Miro's free Entity Relationship Diagram Template to visualize how the entities in your database interact with one another. Miro Logo. Product. Product.. There are three main sets: one-to-one, one-to-many, and many-many. An example of a one-to-one relationship might be a student who has one phone number,.

ER Diagram stands for Entity Relationship Diagram, also known as ERD is a diagram that displays the relationship of entity sets stored in a database. In other words, ER diagrams help to explain the logical structure of databases. ER diagrams are created based on three basic concepts: entities, attributes and relationships.. Many to One. More.

Contoh ERD One to One (1:1) 2. Contoh ERD One to Many (1:M) 3. Contoh ERD Many to Many (M:M) Langkah dan Cara Membuat ERD. Contoh ERD - ERD yaitu kependekan dari Entity Relationship Diagram atau dalam Bahasa Indonesia diagram relasi antar entitas. Bisa dikatakan bahwa ERD merupakan sebuah bagian yang tidak dapat dipisahkan dengan analisa.

ER-Diagram is a pictorial representation of data that describes how data is communicated and related to each other. Any object, such as entities, attributes of an entity, sets of relationship, and other attributes of relationship, can be characterized with the help of the ER diagram. Entities: They are represented using the rectangle-shaped box.

Oleh karena itu, agar dapat menjadi sistem database yang rapi dan terstruktur, kamu membutuhkan Entity Relationship Diagram (ERD). Entity-relationship diagram (ERD) merupakan sebuah model untuk menyusun database agar dapat menggambarkan data yang mempunyai relasi dengan database yang akan didesain.. One to many: hubungan antara satu entitas.

Mermaid syntax for ER diagrams is compatible with PlantUML, with an extension to label the relationship. Each statement consists of the following parts: <first-entity> [<relationship> <second-entity> : <relationship-label>] first-entity is the name of an entity. Names must begin with an alphabetic character and may also contain digits, hyphens.

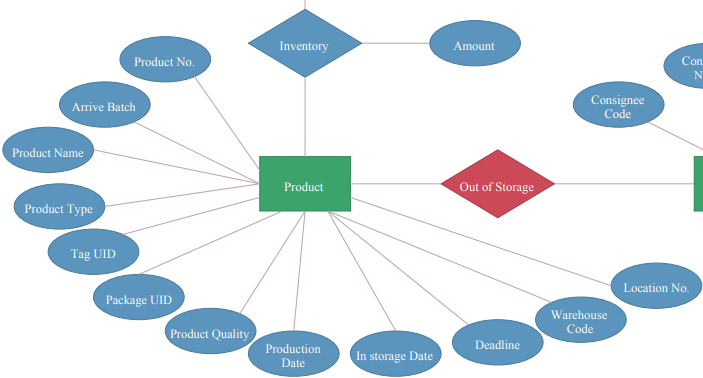

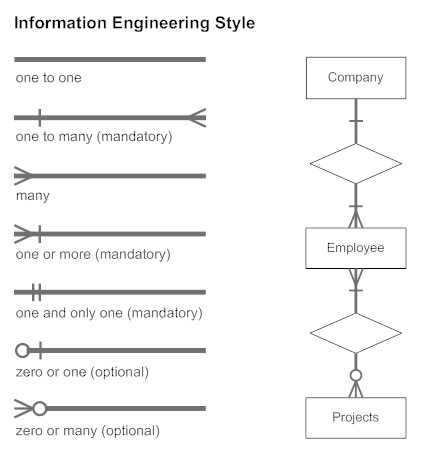

Each reference is one line and has cardinality and mandatory attributes. References in the physical ER diagram can be one-to-one or one-to-many. Many is denoted by the crow's foot; one is denoted by a vertical line. There are no many-to-many references in the physical diagrams. Each table in a reference can be mandatory or optional.

An entity relationship diagram (ERD) illustrates how different entities (such as customers and products) relate to each other in a database. Entities: The tables in your database. Entities are nouns. Common classifications are concepts, locations, roles, events, and things. Attributes: Facts that describe each table.

What is an ER diagram? An Entity Relationship Diagram (ERD) is a visual representation of different entities within a system and how they relate to. for example, one account can have multiple contacts. The relationship, in this case, follows a "one to many" model. There are a number of notations used to present cardinality in ER diagrams

An Entity Relationship Diagram (ERD) is a data model describing how entities (or concepts or things) relate to one another. When created by business analysts or business users, ERDs can be used to understand the business domain, clarify business terminology, and connect business concepts to database structures. (By the way, if you are looking to

Entities. @startuml entity Entity01 { * identifying_attribute -- * mandatory_attribute optional_attribute } @enduml. Again, this is the normal class diagram syntax (aside from use of entity instead of class ). Anything that you can do in a class diagram can be done here. The * visibility modifier can be used to identify mandatory attributes.

Enable the Entity Relation shape library: Click on More shapes at the bottom of the left panel, select the Entity Relation shape library in the Software section and click Apply . If you prefer to work from a template diagram, see the end of this post to access one of the many ER diagram templates in diagrams.net.

It turned out this ERD was used just for their credit card operations. The diagram had hundreds of entities and a very complex set of defined relationships. Of course, this bank employed Ph.D.'s in math and data science, and it was their job to squeeze out efficiency and minimize redundancy. In this diagram were many one-to-one relationships.

ER Diagram: Entity Relational model is a model for identifying entities to be represented in the database and representation of how those entities are related.. In this, there is one-to-many mapping as well where each entity can be related to more than one relationship and the total number of tables that can be used in this is 2.
